ASROCK 마더보드 X570 팬텀 게이밍 4-CB AM4 4 × DDR4 128GB PCI-E 4.0 ATX
ASROCK 마더보드 X570 팬텀 게이밍 4-CB AM4 4 × DDR4 128GB PCI-E 4.0 ATX, Ryzen 5600 4600G 프로 2700 3400G CPU
상품 정보
여러분께 소개할 이 제품은 ASROCK 마더보드 X570 팬텀 게이밍 4-CB AM4 4 × DDR4 128GB PCI-E 4.0 ATX으로, 여러분의 생활을 더욱 편리하고 풍요롭게 만들어 줄 것입니다. 아래에서 제품의 특징, 사용 방법, 그리고 왜 이 제품이 여러분에게 이상적인지에 대한 상세한 정보를 제공하겠습니다. 정성껏 준비한 상품 설명을 통해, 여러분이 필요로 하는 최적의 선택을 할 수 있도록 도와드릴 것입니다.
Motherboard chip
Integrated chip Sound card/network card
Main chipset AMD X570
Chipset description Using AMD X570 chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip Integrated Realtek ALC1220 7.1 channel sound chip
Network card chip Onboard Realtek I211AT Gigabit network card
Processor specifications
CPU type Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
CPU socket Socket AM4
CPU description Able to provide an additional 300W power to the CPU, supporting ASRock B+ Turbo chip II
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description AMD Ryzen series processors (Matisse) support DDR4 4666+(OC)/4400(OC)/4300(OC)/4266(OC)/4200(OC)/4133(OC)/3466(OC)/3200/2933/2667/2400/2133MHz memory
AMD Ryzen series processors (Pinnacle Ridge) support DDR4 3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133MHz memory
AMD Ryzen series processors (Picasso) support DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133MHz memory
Storage expansion
PCI-E standard PCI-E 4.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 8×SATA III interface, 2×Hyper M.2 PCIe (Gen4x4)

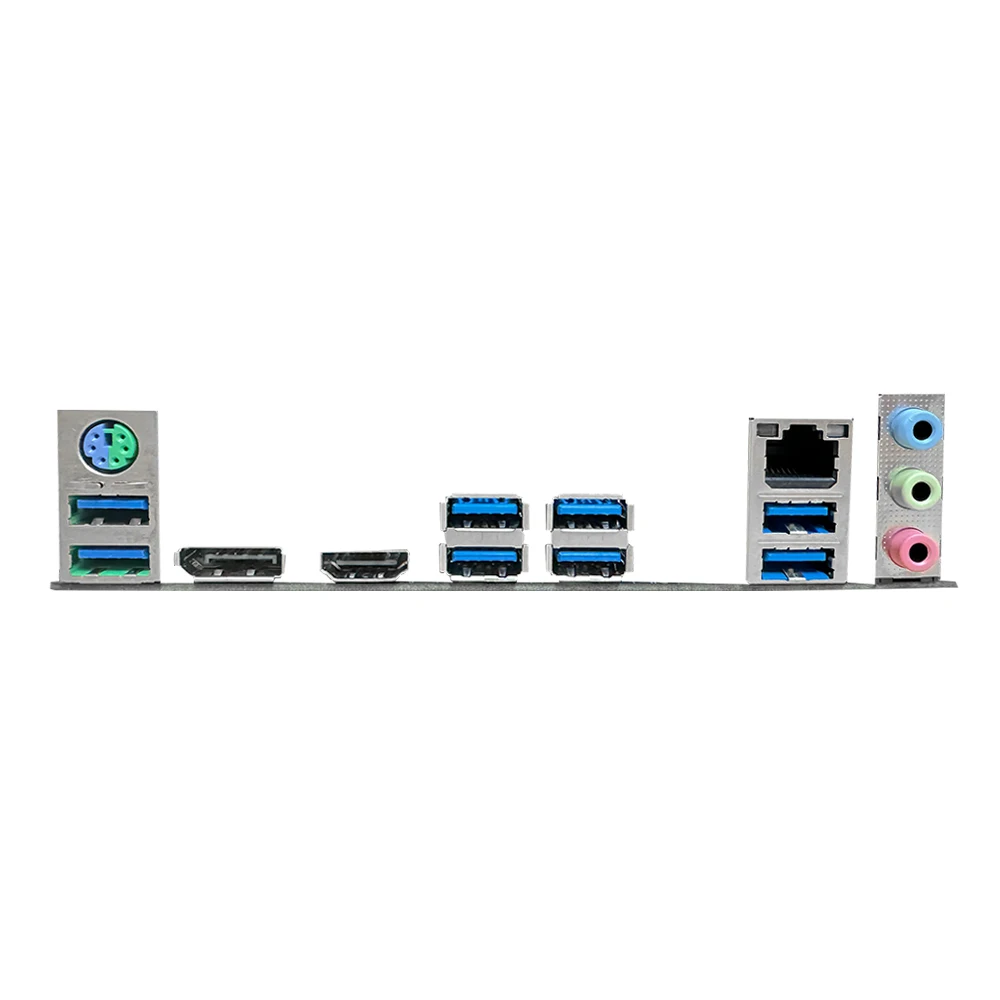

I/O interface
USB interface 1×USB2.0 pin header (supports 2 USB2.0 interfaces) (supports ESD protection)
2×USB3.2 Gen1 pin header (supports 4 USB3.2 Gen1 interfaces) (supports ESD protection)
2×USB3.2 Gen2 Type-A interface (10 Gb/s) (supports ESD protection)
6×USB3.2 Gen1 interface (supports ESD protection)
Video interface 1×HDMI interface, 1×Display Port interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 1×PS/2 universal keyboard and mouse interface, 1×RJ45 network interface, 5×audio interfaces, 3×antenna ports, 1×Thunderbolt pin header
Motherboard type
Motherboard type ATX board type
Dimensions 30.5×24.4cm
